31.
A two port network shown below is external dc sources. The voltages and the currents are measured with voltmeters V1 V2 and ammeter A1 A2 (all assumed to be ideal), as indicated. Under following switch conditions, the readings obtained are:
(i) S1 - Open, S2 - Closed A1 = 0A, V1 = 4.5 V, V2 = 1.5 V, A2 = 1 A
(ii) S1 - Closed, S2 - Open A1 = 4A, V1 = 6 V, V2 = 6 V, A2 = 0 A

The h parameter matrix for this network is
Answer: Option
Explanation:

V1 = Z11I1 + Z12I2 → (1)

Substitute (2) in (1) to get V1 in terms of I1 and V2

Thus H matrix =

32.

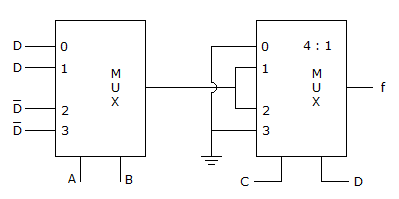

To realize following function 'f'

How many minimum number of 2 input NAND gates are required?
3
6
4
10
Answer: Option
Explanation:

f1 = A B D + A B D + A B D + A B D = A D + A D = A ⊕ D

f = C D(A D + A D) + C D(A D + A D)

Min. no. of 2 input NAND gate is 10.

33.
A uniform plane wave in air with H = 3 sin (ωt - 8x)uzA/m is incident normally on a region with σ = 0, μr = 1, εr = 9. The reflection coefficient is
Answer: Option
Explanation:

.

34.
A memoryless source emits n symbols each with a probability p. The entropy of the source as a function of n
increases as log n
decreases as log (1/n)
increases as n
increases as n log n
Answer: Option
Explanation:

H = n P log

Since they all have same probability. Thus it increases with n.

35.
If (10) x x(10)x = (100)x; (100)x x (100)x = (10000)x then x can take value
2
5
10
All
Answer: Option
Explanation:

(10)x x (10)x = (100)x

⇒ x x x = x2

(100)x x (100)x = (10000)x

x2 x x2 = x4

True for all values of x.
