1.
Flow rate of a river is measured by a/an
pitot tube
vane meter
kennison nozzle
open weir
Your Answer: Option
(Not Answered)
Correct Answer: Option

2.
Range of hydrogen gas constant volume themometer is __________ °C.
-10 to 20
0 to 100
100 - 500
400 - 1000
Your Answer: Option
(Not Answered)
Correct Answer: Option

3.
Strain gage uses an electrical conductor wire, which when elastically stretched increases in length and reduces in diameter. Both these dimensional changes result in __________ in the electrical resistance of the wire.
no change
decrease
increase
exponential decrease
Your Answer: Option
(Not Answered)
Correct Answer: Option

4.
The characteristic equation for the control system with a closed loop transfer function G1/1 + G2 is given by 1 + G2 = 0. The characteristic equation for the control system
depends only upon the open loop transfer function.
determines its stability.
is the same for set point or load changes.
all 'a', 'b' & 'c'
Your Answer: Option
(Not Answered)
Correct Answer: Option

5.
In a second order under damped system, the
time required for the response of first reach its ultimate value is called the response time.
overshoot (which is a measure of how much the response exceeds the ultimate value) increase with the decrease of damping co-efficient e.
decay ratio (which is the ratio of the sizes of successive peaks) is equal to the reciprocal of overshoot.
characteristics of a step response is represented by
Your Answer: Option
(Not Answered)
Correct Answer: Option

6.
Which of the following is not a differential pressure flow meter ?
Rotameter
Flow nozzle
Orificemeter
Venturimeter
Your Answer: Option
(Not Answered)
Correct Answer: Option

7.
A bolometer is
used for the measurement of thermal radiation.
an element which senses optical input and delivers thermal output.
both (a) & (b).
neither (a) nor (b).
Your Answer: Option
(Not Answered)
Correct Answer: Option

8.
The offset introduced by proportional controller with gain Kcin response of first order system can be reduced by
reducing value of Kc.
introducing integral control.
introducing derivative control.
none of the above.
Your Answer: Option
(Not Answered)
Correct Answer: Option

9.
The inverse Laplace transform of the function is
1 + et
1 - et
1 + e-t
1 - e-t
Your Answer: Option
(Not Answered)
Correct Answer: Option

10.

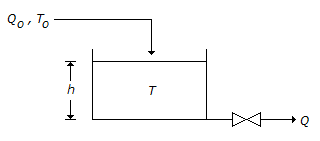

Water is entering a storage tank at a temperature T0 and flow rate Q0 and leaving at a flow rate Q and temperature T. There are negligible heat losses in the tank. The area of cross-section of the tank is A0. The model that describes the dynamic variation of temperature of water in the tank with time is given as :
Q0(T0 - T) = Ac .
Q0T0 - QT = Ac .
Q(T0 - T) = Ac .
Q(T0 - T) = Ac .
Your Answer: Option
(Not Answered)
Correct Answer: Option

11.
Which of the following flow-metering instru-ments is an areameter ?
Venturimeter
Rotameter
Pitot tube
Hot wire anemometer
Your Answer: Option
(Not Answered)
Correct Answer: Option

12.
Working principle of bimetallic thermometers is difference in linear co-efficient of thermal expansion of two strips of different metals welded together. Which of the following has the maximum thermal co-efficient of linear expansion?
Nickel
Brass
Chromel
Invar
Your Answer: Option
(Not Answered)
Correct Answer: Option

13.
Operating range of a temperature measuring instrument is 800 to 1600°C. It could be a/an __________ pyrometer.
radiation
optical
photoelectric
none of these
Your Answer: Option
(Not Answered)
Correct Answer: Option

14.
__________ is the static characteristics of an instrument,
Response
Tine lag
Drift
dynamic error
Your Answer: Option
(Not Answered)
Correct Answer: Option

15.
Which is the most suitable instrument for measuring pressure below 3 microns ?
Mcleoid gauge
Alphatron
Ionisation gauge
Bourdon guage
Your Answer: Option
(Not Answered)
Correct Answer: Option

16.
Which of the following thermocouples is capable of measuring a temperature of -50°C?
Platinum - platinum + rhodium
Chromel - alumel
Iron-constantan
Copper - constantan
Your Answer: Option
(Not Answered)
Correct Answer: Option

17.
For measuring the temperature of a red hot furnace, which is the most suitable instrument ?
Platinum resistance thermometer
Thermocouple
Optical pyrometer
Bimetallic thermometer
Your Answer: Option
(Not Answered)
Correct Answer: Option

18.
Pick out the wrong statement.
There is no transfer lag for a single first order system.
Stirred tank with a water jacket exemplifies an interacting system.
Transfer lag is a characteristics of all higher order systems (other than first order systems).
Transfer lag decreases as the number of stages decreases.
Your Answer: Option
(Not Answered)
Correct Answer: Option

19.
The thermal emf-temperature relationship of most thermocouples is
linear
parabolic
exponential
square root
Your Answer: Option
(Not Answered)
Correct Answer: Option

20.
Which is the strongest paramagnetic gas?
CO2
O2
NO
NO2
Your Answer: Option
(Not Answered)
Correct Answer: Option
