41.
The frequency at which maximum voltage occurs across the inductance in R-L-C series circuit is
42.
A series circuit has R = 5 Ω and C = 10 μF. At t = 0 it is switched on to a 10 V dc battery. The maximum current in the circuit is
Answer: Option
Explanation:
43.

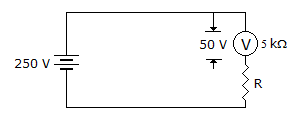

In figure, the value of R should be
Answer: Option
Explanation:
44.
A practical Parallel resonant circuit has a coil in Parallel with a 0.14 μf capacitor. The coil has an inductance of 1 mH and a resistance of 10 ohms. The Q of the circuit is
Answer: Option
Explanation:
.
45.
An AC circuit has two branches in parallel. The current in one branch is 5 A. Then the current source
Answer: Option
Explanation:
5 A current may be (say) 3 + j 4A. The current in the other branch is x ± jy. The total current is (3 + x) + (4 ± y). This may be 5A or more or less.
