11.
An m derived low pass filter has fc = 1000 Hz and m = 0.6. This filter will have infinite attenuation at
Answer: Option
Explanation:
For m derived low pass filter
12.

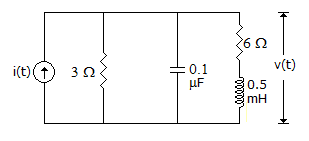

In figure, i(t) is a unit step current. The steady state value of v(t) is
Answer: Option
Explanation:
In steady state inductance is short-circuited and capacitance is open circuited. Current through 6Ω resistance =
and
13.
A current 10 sin (200t) A flows through a 5 mH inductance. The expression for voltage is
Answer: Option
Explanation:
Z = jXL = jωL =
= 1∠90° and V = IXL
14.
In figure, capacitor is used to develop pulses of short duration and large duty cycle across R2 when switch is closed. Which of the following combinations is best suited?
Answer: Option
Explanation:
Large values of R1 and C mean large time of charging C and hence large duty cycle. Small value of R2 ensures that duration of pulses is small.
15.
In figure, which value of ZL will cause maximum power to be transferred to the load?
Answer: Option
Explanation:
As seen from ZL, the circuit impedance =
