21.

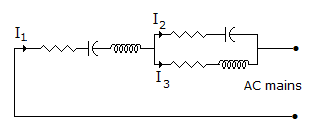

In the circuit of figure is
Answer: Option
Explanation:
I3 is inductive current and must lag I2 which is capacitive current.
22.
The VTH at terminals A and B is equal to
Answer: Option
Explanation:
Apply KVL to loop 1
5V - 3I1 - 2 (I1 - I2) - 5V = 0
∴ I2 = 0
5V - 5V - 5I1 = 0
I1 = 0
∴ VAB = 5 volt.
23.
Consider the following
If a network has impedance (1 - j) at a specific frequency, the circuit would consists of series
If a network has impedance (1 - j) at a specific frequency, the circuit would consists of series
- R and C
- R and L
- R, L and C
Answer: Option
Explanation:
RC circuit has impedance of the form (1 - j). Moreover R, L, C circuit can also have impedance of the form 1 - j if XC > XL.
24.
Assertion (A): Power is the rate at which energy is supplied.
Reason (R): Energy = VIt.
Answer: Option
Explanation:
.
25.
The circuit in figure, the switched on at t = 0. After a long time the current through 5 Ω resistance is
Answer: Option
Explanation:
At t = ∞ inductance behaves as short-circuit.
