16.
If sequence currents Ia1 = 2 ∠- 90°, Ia2 = 0.2 ∠ 90° and Ia3 = 1.8 ∠ 90°, Ia =
Answer: Option
Explanation:
Ia = Ia1 + Ia2 + Ia0 = 2∠-90 + 0.2∠90 + 1.8∠90° = 2∠-90° + 2∠90° = 0.
17.
For the R-L circuit shown in the figure, the input voltage vi(t) = U(t). The current i(t) is
Answer: Option
Explanation:
Vi(s) = 1/s
at t = ∞ i(t) = 1/2 = 0.5 .
18.
If f(t) = - f(- t) and f(t) satisfies Dirichlet conditions, then f(t) can be expanded in Fourier series having
Answer: Option
Explanation:
Since f(-t) = -f(t) only sine terms exist.
19.
A parallel plate capacitor has plate area A and distance between the plates is d. It has two dielectrics each of thickness d and area 0.5 A. The dielectric constants are ∈1 and ∈2. The total capacitance is given by the equation
Answer: Option
Explanation:
The combination is equal to two capacitors in parallel.
20.

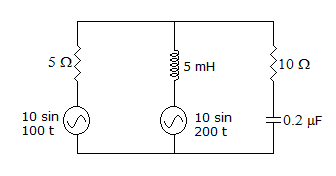

Which of the following theorems can be conveniently used to find power consumed in 10 Ω resistor in figure?
Answer: Option
Explanation:
Since the frequencies of the two sources are different only superposition theorem can be used.
