26.
Zinc oxide is a non-linear resistance.
Answer: Option
Explanation:
It is used in lightning arresters due to its non-linear resistance property.
27.
For the three coupled coils shown in figure, KVL equation is
Answer: Option
Explanation:
M12 is positive while M23 and M13 are negative because of dots shown in figure.
28.
Figure shows a dc circuit. The Thevenin's equivalent circuit at terminals a - b is
not feasible
Answer: Option
Explanation:
A current source with series resistance is not feasible.
29.
The dependent current source shown in given figure.
Answer: Option
Explanation:
P = I2.R
16 x 5 80 W,
Voltage source and current source both are in opposite direction.
30.

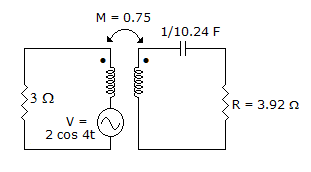

The current flowing through the resistance R in the circuit in the figure has the form 2 cos 4t, where R is
Answer: Option
Explanation:
Inductor is not given, hence ignoring the inductance. Let I1 and I2 are currents in the loop then
.
