46.
The energy stored in a coil is 108 J. It is opened suddenly in 10 ms. The power dissipated instantaneously across the blades of switch is
Answer: Option
Explanation:
47.
A parallel RLC circuit with R1 = 20,
is scaled giving R2 = 104, L2 = 10-4 and C2, the value of C2 is
is scaled giving R2 = 104, L2 = 10-4 and C2, the value of C2 isAnswer: Option
Explanation:
0.02 x 10-8 0.2 nF.
48.
Thermistor has a positive temperature coefficient.
Answer: Option
Explanation:
Temperature coefficient of thermistor is negative.
49.

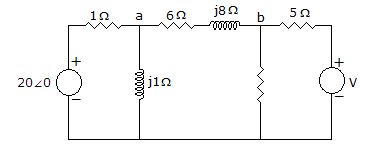

In figure, power in 6 Ω resistor is zero then V =
Answer: Option
Explanation:
Power in 6Ω resistor can be zero only if current in 6Ω resistor is zero. Therefore, voltages of nodes a and b are equal
. Since equal resistances of 5Ω are on two sides of node b,
.
50.
The Thevenin's equivalent of network in figure(1) is a 10 V source in series with 2 Ω resistance. If a 3 Ω resistance is connected across AB as shown in figure(2) the Thevenin's equivalent is
Answer: Option
Explanation:
.
