Electronics and Communication Engineering - Matching Questions

Exercise : Matching Questions - Section 2
36.

Match the following:

List I (Logic family) List II (Characteristic)
A.TTL1.Maximum power consumption
B.ECL2.Highest packing density
C.NMOS3.Least power consumption
D.CMOS4.Saturated Logic

A-1, B-4, C-2, D-3
A-1, B-4, C-3, D-2
A-4, B-1, C-2, D-3
A-4, B-1, C-3, D-2
Answer: Option
Explanation:
No answer description is available. Let's discuss.
37.

Match the following:

List I (VCR system) List II (Azimuth angle)
A.VHS1.7°
B.Video 20002.15°
C.Betamax3.6°

A-1, B-2, C-3
A-1, B-3, C-2
A-3, B-1, C-2
A-3, B-2, C-1
Answer: Option
Explanation:
No answer description is available. Let's discuss.
38.

Match the following:

List I List II

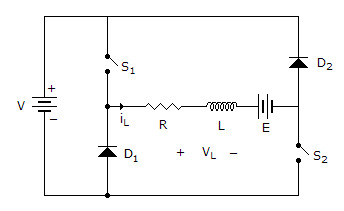

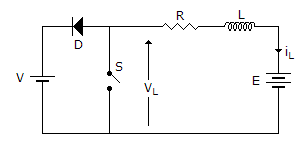

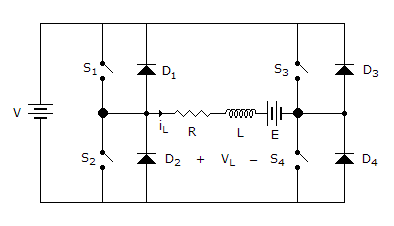

A.Step up chopper1.
B.Class E chopper2.
C.Class D chopper3.
D.Class B chopper4.

A-1, B-3, C-4, D-2
A-3, B-1, C-4, D-2
A-1, B-2, C-3, D-4
A-4, B-2, C-1, D-3
Answer: Option
Explanation:
No answer description is available. Let's discuss.
39.

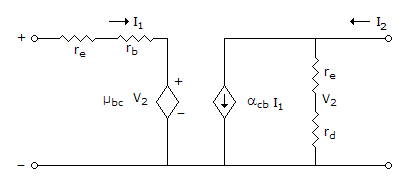

List I (Theorems) List II (Property of Network)
A.h111.1/(re + rd)
B.h122.rb + re
C.h213.μbc
D.h224.μcb

A-2, B-1, C-4, D-3
A-4, B-3, C-2, D-1
A-2, B-3, C-4, D-1
A-4, B-1, C-2, D-3
Answer: Option
Explanation:
No answer description is available. Let's discuss.
40.

Match the following:

List I List II
A.Anderson Bridge1.Low resistance
B.Kelvin Bridge2.Medium resistance
C.Schering Bridge3.Inductance
D.Wheatstone Bridge4.Capacitance

A-4, B-2, C-3, D-1
A-3, B-2, C-4, D-1
A-3, B-1, C-4, D-2
A-4, B-1, C-3, D-2
Answer: Option
Explanation:
No answer description is available. Let's discuss.
