Electronic Devices - DC Biasing-FETs
Exercise : DC Biasing-FETs - General Questions
- DC Biasing-FETs - General Questions
- DC Biasing-FETs - Filling the Blanks
11.
On the universal JFET bias curve, the vertical scale labeled ________ can, in itself, be used to find the solution to ________ configurations.
12.
Calculate the value of RS. Assume VGSQ = −2V.
0 k
1.68 k
6.81 k
8.5 k
13.
Calculate the value of RD.
2 k
3 k
3.5 k
4.13 k
14.

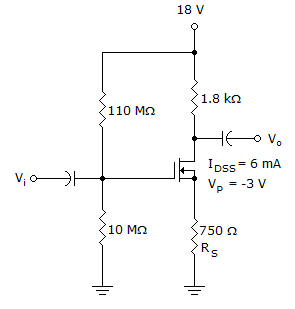

At what value of RS does the circuit switch from depletion mode to enhancement mode?
250
500
10 M
None of the above
15.
Which of the following current equations is true?
