Electronic Devices - DC Biasing-FETs

Exercise : DC Biasing-FETs - General Questions
31.
What is the new value of RD when there is 7 V across VDS?

3 k
3.3 k
4 k
5 k
Answer: Option
Explanation:
No answer description is available. Let's discuss.
32.
Which of the following describe(s) the difference(s) between JFETs and depletion-type MOSFETs?
VGS can be positive or negative for the depletion-type.
ID can exceed IDSS for the depletion-type.
The depletion-type can operate in the enhancement mode.
All of the above
Answer: Option
Explanation:
No answer description is available. Let's discuss.
33.

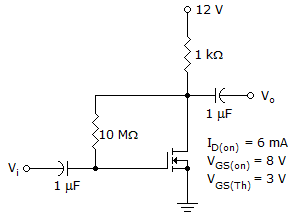

Determine the value of VDSQ.

3.5 V
4.86 V
7.14 V
10 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
34.
Specification sheets typically provide the value of the constant k for enhancement-type MOSFETs.
True
False
Answer: Option
Explanation:
No answer description is available. Let's discuss.
35.

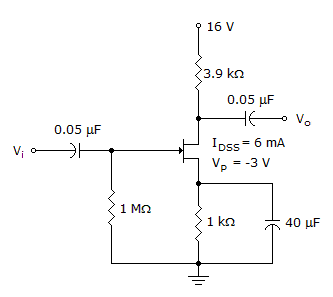

Determine the quiescent values of ID and VGS.

1.2 mA, –1.8 V
1.5 mA, –1.5 V
2.0 mA, –1.2 V
3.0 mA, –0.8 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
