Electronic Devices - DC Biasing-FETs

Exercise : DC Biasing-FETs - General Questions
26.
What is the approximate current level in the gate of an FET in dc analysis?
0 A
0.7 mA
0.3 mA
Undefined
Answer: Option
Explanation:
No answer description is available. Let's discuss.
27.

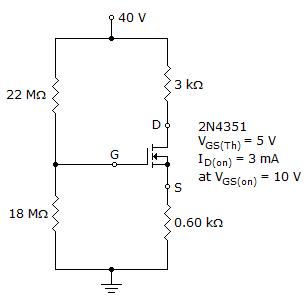

Calculate VD.

23.0 V
17.0 V
4.6 V
12.4 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
28.
Calculate VCE.

0 V
2 V
3 V
5.34 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
29.
Seldom are current levels measured since such maneuvers require disturbing the network structure to insert the meter.
True
False
Answer: Option
Explanation:
No answer description is available. Let's discuss.
30.
In the design of linear amplifiers, it is good design practice to choose operating points that do not crowd the saturation level or cutoff regions.
True
False
Answer: Option
Explanation:
No answer description is available. Let's discuss.
