Electronic Devices - DC Biasing-FETs

Exercise : DC Biasing-FETs - General Questions
21.

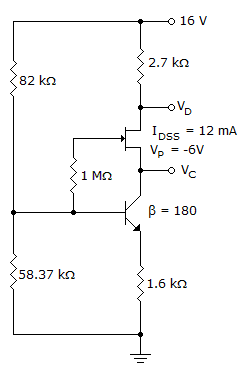

Calculate VDS.

0 V
6 V
16 V
11 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
22.
For the noninverting amplifier, one of the most important advantages associated with using a JFET for control is the fact that it is ________ rather than ________ control.
dc, ac
ac, dc
Answer: Option
Explanation:
No answer description is available. Let's discuss.
23.
What are the voltages across RD and RS?

0 V, 0 V
5 V, 5 V
10 V, 10 V
20 V, 20 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
24.
Depletion-type MOSFETs do not permit operating points with positive values of VGS and levels of ID that exceed IDSS.
True
False
Answer: Option
Explanation:
No answer description is available. Let's discuss.
25.

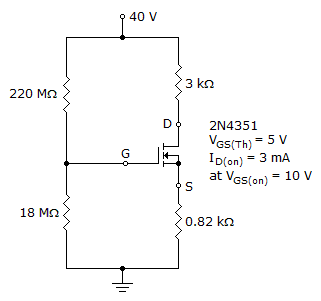

Calculate the value of VDSQ.

0 V
20 V
30 V
40 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
