1.

What are the values of Emax and Emin displayed on the oscilloscope, when a 1 kV P-P carries is modulated to 50%?

A.
2 kV, 0.5 kV
B.
1 kV, 0.5 kV
C.
0.75 kV, 0.25 kV
D.
0.5 kV, 1.5 kV

Your Answer: Option (Not Answered)

Correct Answer: Option C

Explanation:

Emax - Emin = 0.5 x 1 kV = 0.5 kV

2Emax = 1.5 kVi, Emax = 0.75 kV

Emin = 0.25 kV.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


2.

The equation sin (z) = 10 has

A.
no real or complex solution
B.
exactly two distinct complex solutions
C.
a unique solution
D.
an infinite number of complex solutions

Your Answer: Option (Not Answered)

Correct Answer: Option A

Explanation:

Since value lies between - 1 and + 1. Therefore no real or complex solution exists.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


3.

The logic function f(A B, C) = Σm(0, 2, 4, 5, 6) represented by

A.
i
B.
i, ii
C.
i, iii
D.
i, ii, iii

Your Answer: Option (Not Answered)

Correct Answer: Option B

Explanation:

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


4.

In the given figure
.
The damping coefficient for the given circuit is __________ .

A.
1/2
B.
1/4
C.
2
D.
1

Your Answer: Option (Not Answered)

Correct Answer: Option A

Explanation:

Damping coefficient is given by,

Substituting R = 1 Ω, L = 1 H

.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


5.

Find current i.

A.
4/5 A
B.
5/4 A
C.
1.23 A
D.
1.32 A

Your Answer: Option (Not Answered)

Correct Answer: Option A

Explanation:

The given circuit can be compared with Wheatstone's Bridge

Req = (10 + 10 + 10) || (10 + 10 + 10) = 30 || 30 = 15 Ω

.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


6.

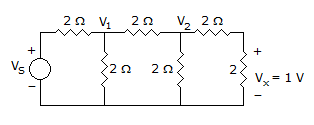

The Vs is given by

A.
8 V
B.
13 V
C.
1 V
D.
4 V

Your Answer: Option (Not Answered)

Correct Answer: Option B

Explanation:

Using Nodal analysis

...(i)

...(ii)

V2 = 2Vx

V2 = 2V ...(iii)

...(iv)

Put V2 = 2V

Put in equation (iii), Vs = 3V1 - V2

Vs = 3 x (+5V) - 2V

Vs = 15V - 2V = 13V.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


7.

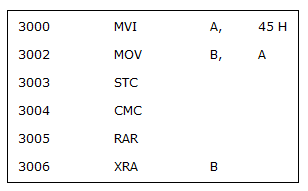

For the 8085 assembly language program given below, the content of the accumulator after the execution of the program is

A.
00H
B.
45H
C.
67H
D.
E7H

Your Answer: Option (Not Answered)

Correct Answer: Option C

Explanation:

A → 0100 0101

B → 0100 0101

Carry flag → 0

RAR will A → 0010 0010

XRA B 0110 0111

67.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


8.

Find the Fourier transform of the half cosine pulse as shown below :

A.
0.5 {sin c [0.25(f - 1)] + sin c [2.5(f + 1)]}
B.
0.5 {sin c [0.5(f - 1)] + sin c [0.5(f + 1)]}
C.
0.25 {sin c [0.25(f - 1)] + sin c [0.25 (f - 1)]}
D.
0.25 {sin c [0.5(f - 1)] + sin c [0.5(f - 1)]}

Your Answer: Option (Not Answered)

Correct Answer: Option B

Explanation:

The given signal can be expressed as multiplication of x1(t) and x2(t) as shown below.

where A = 2, T/2 = 0.25 => T = 0.5

x(t) = x1(t) x x2(t)

=> X(f) = X1(f) * X2(f)

Now X1(f) = [δ(f - f0) + δ(f + f0)]

= [sin c [T(f - f0)] + sin c[T(f + f0)]]

Now, A = 2, T = 0.5 and f0 = = 1

=> X(f) = 0.5[sin c (0.5(f - 1)) + sin c (0.5(f + 1))].

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


9.

In the signal flow graph of figure, y/x equals.

A.
3
B.
5/2
C.
2
D.
None of the above

Your Answer: Option (Not Answered)

Correct Answer: Option C

Explanation:

P1 = 5 x 2 x 1 = 10

L1 = - 4

.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


10.

A system with transfer function has an output for the input signal . Then, the system parameter 'p' is

A.
3
B.
C.
1
D.

Your Answer: Option (Not Answered)

Correct Answer: Option B

Explanation:

|y(t)| = |M(ω)||x(t)|.

ω2 + p2 = ω2p2, 4 + p2 = 4p2

3p2 = 4, .

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


11.

The Taylor series expansion of at x = p is given by

A.
B.
C.
D.

Your Answer: Option (Not Answered)

Correct Answer: Option D

Explanation:

.

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


12.

Consider the voltage transfer characteristic of a standard CMOS inverter

where region A corresponds to

A.
NMOS and PMOS triode
B.
Both are saturation
C.
NMOS saturated PMOS linear
D.
None of these

Your Answer: Option (Not Answered)

Correct Answer: Option C

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


13.

Which one of the following is applicable to any network-linear or non-linear, active or passive, time-varying or invariant - as long as Kirchhoff laws are not violated?

A.
Tellegen's theorem
B.
Reciprocity theorem
C.
Maximum power transfer theorem
D.
Superposition theorem

Your Answer: Option (Not Answered)

Correct Answer: Option A

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


14.

In a network with twelve circuit elements and five nodes, what is the minimum number of mesh equations?

A.
24
B.
12
C.
10
D.
8

Your Answer: Option (Not Answered)

Correct Answer: Option D

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


15.

Assertion (A): The expression E = - ΔV, where E is the electric field and V is the potential is not valid for time varying fields.

Reason (R): The curl of a gradient is identically zero.

A.
Both A and R are individually true and R is the correct explanation of A
B.
Both A and R are individually true but R is not the correct explanation of A
C.
A is true but R is false
D.
A is false but R is true

Your Answer: Option (Not Answered)

Correct Answer: Option B

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


16.

Which of the following are included in the architecture of a computer?

  1. Addressing modes, CPU
  2. Instruction set, data formats
  3. Secondary memory, operating system
Select the correct answer from the codes given below:

A.
1 and 2
B.
1 and 3
C.
2 and 3
D.
3 only

Your Answer: Option (Not Answered)

Correct Answer: Option A

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


17.

Consider the following statements:
The klystron and travelling wave tube differ from each other,

  1. In TWT the microwave circuit is non- resonant.
  2. In klystron the microwave circuit is resonant.
  3. TWT uses attenuator.
  4. The wave is TWT is a non-propagating wave.
Which of the above statements are correct?

A.
1 and 2 only
B.
3 and 4 only
C.
1, 2 and 3
D.
2, 3 and 4

Your Answer: Option (Not Answered)

Correct Answer: Option C

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


18.

Consider the function where F(s) is the Laplace transform of f(t). What is the steady-state value of f(t)?

A.
Zero
B.
One
C.
Two
D.
A value between - 1 and + 1

Your Answer: Option (Not Answered)

Correct Answer: Option D

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


19.

A magnetic field in air is measured to be

What current distribution leads to this field?
[Hint: The algebra is trivial in cylindrical coordinates.]

A.
B.
C.
D.
0

Your Answer: Option (Not Answered)

Correct Answer: Option C

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum


20.

Which of the following photodetector does not provide gain?

A.
Phototransistor
B.
Photoconductor
C.
Avalanche photodiode
D.
p-i-n photodiode

Your Answer: Option (Not Answered)

Correct Answer: Option D

Learn more problems on : Exam Questions Papers

Discuss about this problem : Discuss in Forum
