Exercise : Time Response of Reactive Circuits - General Questions
1.

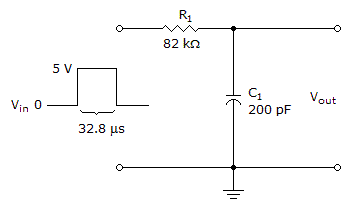

What voltage will the capacitor charge up to in the given circuit for the single input pulse shown?

3.15 V
4.3 V
4.75 V
4.9 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
2.
If a periodic pulse waveform is applied to an RC differentiating circuit, which two conditions are possible?
tw greaterthanorequalto.gif 5tau.gif or tw > 5tau.gif
tw = 5tau.gif or tw > 5tau.gif
tw lessthanorequalto.gif 5tau.gif or tw < 5tau.gif
tw greaterthanorequalto.gif 5tau.gif or tw < 5tau.gif
Answer: Option
Explanation:
No answer description is available. Let's discuss.
3.
An RL integrator and an RC differentiator can act as what types of filters, respectively?
low-pass, low-pass
low-pass, high-pass
high-pass, high-pass
high-pass, low-pass
Answer: Option
Explanation:
No answer description is available. Let's discuss.
4.
In a repetitive-pulse RC integrator circuit, what would the steady-state voltage equal at the end of the fifth pulse? Assume a Vin of 20 V.
1.46 V
14.62 V
20 V
0 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
5.
What is a circuit that produces short-duration spikes?
A trigger pulse generator
An RL integrator
A timing circuit
A pulse waveform-to-dc converter
Answer: Option
Explanation:
No answer description is available. Let's discuss.
