Electronic Devices - DC Biasing-BJTs

Exercise : DC Biasing-BJTs - General Questions
16.
Which of the following is (are) a stability factor?
S(ICO)
S(VBE)
S()
All of the above
Answer: Option
Explanation:
No answer description is available. Let's discuss.
17.

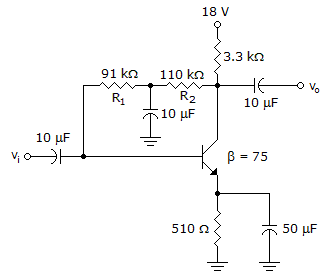

Calculate ICsat.

35.29 mA
5.45 mA
1.86 mA
4.72 mA
Answer: Option
Explanation:
No answer description is available. Let's discuss.
18.
Calculate the storage time in a transistor switching network if toff is 56 ns, tf = 14 ns, and tr = 20 ns.
70 ns
42 ns
36 ns
34 ns
Answer: Option
Explanation:
No answer description is available. Let's discuss.
19.
Determine ICQ at a temperature of 175º C if ICQ = 2 mA at 25º C for RB / RE = 20 due to the S() stability factor.
2.417 mA
2.392 mA
2.25 mA
2.58 mA
Answer: Option
Explanation:
No answer description is available. Let's discuss.
20.

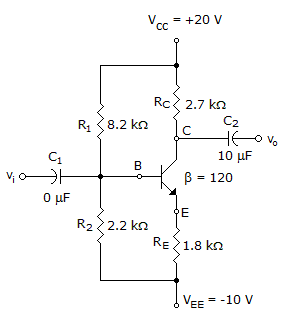

Calculate ETh for this network.

−12.12 V
16.35 V
−3.65 V
10 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
