Digital Electronics - MSI Logic Circuits

Exercise : MSI Logic Circuits - Filling the Blanks
11.
An everyday illustration of a multiplexer is ________.
the volume control in a stereo receiver
the function switch on a stereo receiver
the balance control on a stereo receiver
the treble-bass control on a stereo receiver
Answer: Option
Explanation:
No answer description is available. Let's discuss.
12.
The binary value of the BCD number 1000 0001 (81) is ________.
0101 0001
0110 0011
0100 0001
1000 0000
Answer: Option
Explanation:
No answer description is available. Let's discuss.
13.
A decimal-to-BCD encoder has ________ data inputs.
two
four
five
ten
Answer: Option
Explanation:
No answer description is available. Let's discuss.
14.

For the inputs shown in the given figure, the output is ________.

1
0
Answer: Option
Explanation:
No answer description is available. Let's discuss.
15.

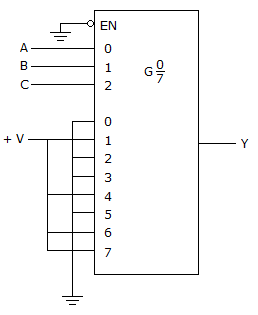

The diagram given below shows a ________ being used as a(n) ________ and Y = ________.

multiplier, divider, 2.25
multiplexer, encoder, 7641
multiplexer, logic function generator, ABC + ABC + ABC + ABC
logic function generator, multiplexer, 1467
Answer: Option
Explanation:
No answer description is available. Let's discuss.
