26.
A(n) ________ has a number of input lines, only one of which is activated at a given time, and produces on N-bit output code, depending on which input is activated.
27.

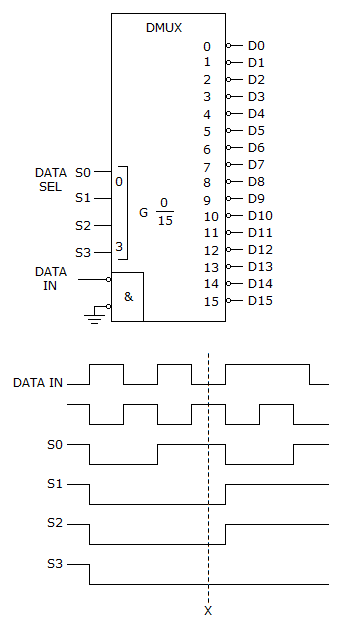

The device shown in below is a ________ and for the waveforms shown in the accompanying diagram, the ________ output at point X will be ________ and all others will be ________.
28.
The normal outputs of a magnitude comparator are ________.
29.
An eight-line multiplexer must have as inputs ________.
30.
In order to select data input I5 of a 74151 eight-line multiplexer, the select inputs must be ________.
