41.

In a direct shear test the shear stress and normal stress on a dry sand sample at failure are 0.6 kg/cm2 and 1 kg/cm2 respectively. The angle of internal friction of the sand will be nearly

A. 25°
B. 31°
C. 37°
D. 43°

Answer: Option B

Explanation:

No answer description available for this question. Let us discuss.

42.

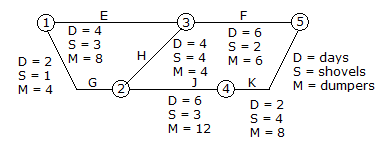

In the network given in figure, the maximum number of shovels and dumpers required are

A. 6 shovels and 14 dumpers on days 9 and 10
B. 24 shovels and 10 dumpers on days 3 and 4
C. 30 shovels and 90 dumpers on all days
D. 10 shovels and 24 dumpers on days 3 and 4

Answer: Option D

Explanation:

No answer description available for this question. Let us discuss.

43.

Consider the following statements :
A good soil for making bricks should contain
1. about 30% alumina
2. about 10% lime nodules
3. a small quantity of iron oxides
4. about 15% magnesia.
Of these statements :

A. 1 and 2 are correct
B. 1 and 3 are correct
C. 1, 3 and 4 are correct
D. 2, 3 and 4 are correct

Answer: Option B

Explanation:

No answer description available for this question. Let us discuss.

44.

Service connection consists of

A. ferrule, stopcock and gooseneck
B. ferrule, check valve and gooseneck
C. stopcock, meter and sluice valve
D. sluice valve, check valve and meter

Answer: Option A

Explanation:

No answer description available for this question. Let us discuss.

45.

In the phase diagrams given, the change due to initial state changing into final state is shown due to consolidation. Depth of soil layer undergoing consolidation is H ; e0 is initial void ratio; ef is final void ratio ; Δe is change in void ratio. Indicate which of the following expressions gives settlement of the layer :

A.
B.
C.
D.

Answer: Option D

Explanation:

No answer description available for this question. Let us discuss.
