Electronics - RLC Circuits and Resonance

Exercise : RLC Circuits and Resonance - Filling the Blanks
11.

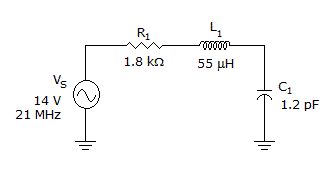

The bandwidth is ______ in the given circuit.

179.28 Hz
3.54 kHz
4.44 kHz
15.85 kHz
Answer: Option
Explanation:
No answer description is available. Let's discuss.
12.

The voltage across the inductor is ______ in the given circuit.

6.5 V
12.4 V
14 V
50 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
13.
When a parallel tank circuit is used in series with an output load resistor the filter is ______.
low-pass
band-stop
band-pass
high-pass
Answer: Option
Explanation:
No answer description is available. Let's discuss.
14.
Series resonance happens when _____.
XC = XC
XL = XC
XL = XB
XT = R
Answer: Option
Explanation:
No answer description is available. Let's discuss.
