Electronic Devices - FET Amplifiers

Exercise : FET Amplifiers - General Questions
51.

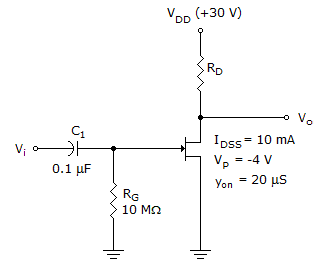

Determine the value for RD if the ac gain is 8.

1.51 k
1.65 k
1.85 k
2.08 k
Answer: Option
Explanation:
No answer description is available. Let's discuss.
52.

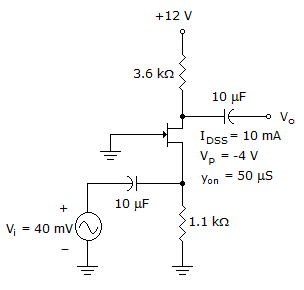

Referring to this figure, calculate Zi for yos = 20 S. Assume VGSQ = −2.2V.

300.2
330.4
340.5
350.0
Answer: Option
Explanation:
No answer description is available. Let's discuss.
53.
FET amplifiers provide ________.
excellent voltage gain
high input impedance
low power consumption
All of the above
Answer: Option
Explanation:
No answer description is available. Let's discuss.
54.
CMOS digital switches use
n-channel and p-channel D-MOSFETs in series.
n-channel and p-channel D-MOSFETs in parallel.
n-channel and p-channel E-MOSFETs in series.
n-channel and p-channel E-MOSFETs in parallel.
Answer: Option
Explanation:
No answer description is available. Let's discuss.
55.
What is the range of gm for JFETs?
1 S to 10 S
100 S to 1000 S
1000 S to 5000 S
10000 S to 100000 S
Answer: Option
Explanation:
No answer description is available. Let's discuss.
