Digital Electronics - Combinational Logic Circuits
Exercise : Combinational Logic Circuits - General Questions
- Combinational Logic Circuits - General Questions
- Combinational Logic Circuits - True or False
- Combinational Logic Circuits - Filling the Blanks
41.

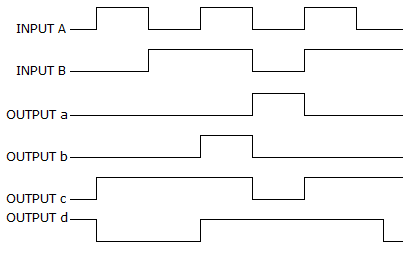

For a two-input XNOR gate, with the input waveforms as shown below, which output waveform is correct?
42.
A certain BCD-to-decimal decoder has active-HIGH inputs and active-LOW outputs. Which output goes LOW when the inputs are 1001?
43.
Solve the network in the figure given below for X.
44.
A full-adder has a Cin = 0. What are the sum (
) and the carry (Cout) when A = 1 and B = 1?
) and the carry (Cout) when A = 1 and B = 1? = 0, Cout = 0 = 0, Cout = 1 = 1, Cout = 0 = 1, Cout = 145.
What type of logic circuit is represented by the figure shown below?
