24.

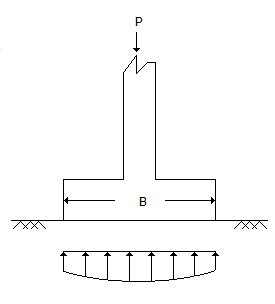

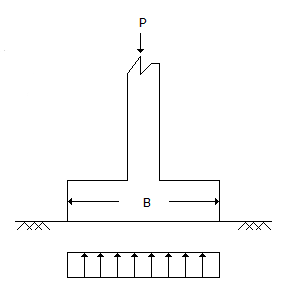

The nature of contact pressure distribution under a rigid footing resting on a sandy soil and subjected to uniformly distributed load is as shown in :
Discussion:
5 comments Page 1 of 1.
Dharmesh said:
5 years ago
B is the right because contact pressure in rigid footing is non-uniform.
Deepak said:
5 years ago
B is the right answer.
Nisha said:
7 years ago
B is the right answer because in rigid footing settlement is uniform for both cases sandy or clay but contact pressure max at centre and min at corner in case of sandy soil and the contact pressure is max in the corner and mini in the centre in case of clay.
Prathik said:
8 years ago
D is the right answer because in rigid pavement settlement will be uniform.
So contact pressure will be varying.
It's a sandy soil so contact pressure at the center will be minimum and it will b max on edges, so D is the right answer.
So contact pressure will be varying.
It's a sandy soil so contact pressure at the center will be minimum and it will b max on edges, so D is the right answer.
Siva prasad said:
8 years ago
@ALL.
I go with with [c] because when load is applied on the sandy soils it does not mean it will have zero stress at the edges, but it will be minimum.
I go with with [c] because when load is applied on the sandy soils it does not mean it will have zero stress at the edges, but it will be minimum.
(1)
