6.

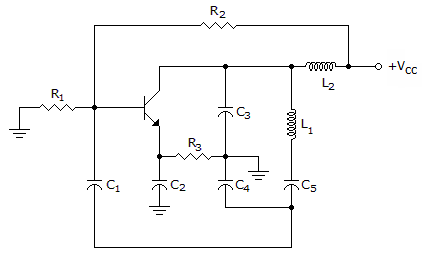

Refer to the given figure. The resonant frequency is controlled by

C3 and L1.
C2, C4, C5, and L1.
C3, C4, C5, and L1.
C3, C4, C5, and L2.
Answer: Option
Explanation:
No answer description is available. Let's discuss.
7.

Refer to this figure. Determine the resonant frequency.

123.4 kHz
61.7 kHz
45.94 kHz
23.1 kHz
Answer: Option
Explanation:
No answer description is available. Let's discuss.
8.
The feedback signal in a(n) ________ oscillator is derived from an inductive voltage divider in the LC circuit.
Hartley
Armstrong
Colpitts
Answer: Option
Explanation:
No answer description is available. Let's discuss.
9.

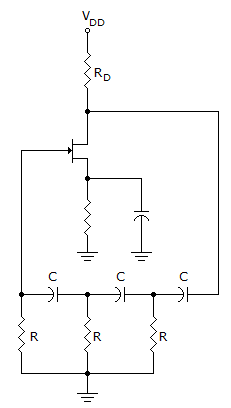

Given gm = 5000 S, rd = 40 k, R = 10 k, and A = 35. Determine the value of RD for oscillator operation at 1 kHz.

8.05 k
8.48 k
10.8 k
12.3 k
Answer: Option
Explanation:
No answer description is available. Let's discuss.
10.
The attenuation of the three-section RC feedback phase-shift oscillator is
1/9.
1/30.
1/3.
1/29.
Answer: Option
Explanation:
No answer description is available. Let's discuss.
