Electronic Devices - FET Devices

Exercise : FET Devices - General Questions
21.
The three terminals of the JFET are the ________, ________, and ________.
gate, collector, emitter
base, collector, emitter
gate, drain, source
gate, drain, emitter
Answer: Option
Explanation:
No answer description is available. Let's discuss.
22.
Which of the following is (are) the terminal(s) of a field-effect transistor (FET).
Drain
Gate
Source
All of the above
Answer: Option
Explanation:
No answer description is available. Let's discuss.
23.
A BJT is a ________-controlled device. The JFET is a ________ - controlled device.
voltage, voltage
voltage, current
current, voltage
current, current
Answer: Option
Explanation:
No answer description is available. Let's discuss.
24.
How many terminals can a MOSFET have?
2
3
4
3 or 4
Answer: Option
Explanation:
No answer description is available. Let's discuss.
25.

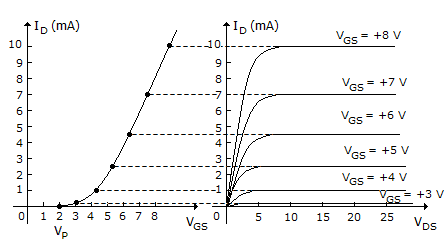

Refer to the following figure. Calculate VGS at ID = 8 mA for k = 0.278 × 10–2 A/V2.

3.70 V
5.36 V
7.36 V
2.36 V
Answer: Option
Explanation:
No answer description is available. Let's discuss.
